MaximalRectangle

最大矩形

• 题目介绍
• 题目解法

题目介绍

最大矩形

给定一个仅包含 0 和 1 、大小为 rows x cols 的二维二进制矩阵，找出只包含 1 的最大矩形，并返回其面积。

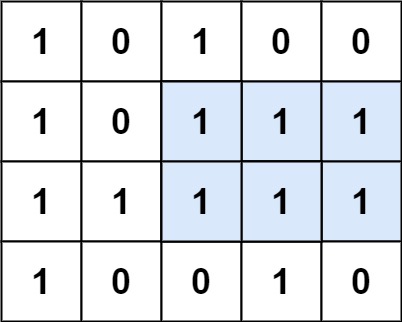

示例1：

输入：matrix = [["1","0","1","0","0"],["1","0","1","1","1"],["1","1","1","1","1"],["1","0","0","1","0"]]
输出：6
解释：最大矩形如上图所示。

示例 2：

输入：matrix = []
输出：0

示例 3：

输入：matrix = [["0"]]
输出：0

示例 4：

输入：matrix = [["1"]]
输出：1

示例 5：

输入：matrix = [["0","0"]]
输出：0

提示：

• rows == matrix.length
• cols == matrix[0].length
• 0 <= row, cols <= 200
• matrix[i][j] 为 '0' 或 '1'

题目解法

package algorithm;

import java.util.Deque;
import java.util.LinkedList;

public class MaximalRectangle {

    public static int maximalRectangle(char[][] matrix) {

        int m = matrix.length;
        if (m == 0) {
            return 0;
        }
        int n = matrix[0].length;
        // 左边连续1的数量
        int[][] left = new int[m][n];

        for (int i = 0; i < m; i++) {
            for (int j = 0; j < n; j++) {
                if (matrix[i][j] == '1') {
                    // 注意是括号+1
                    left[i][j] = (j == 0 ? 0 : left[i][j - 1]) + 1;
                }
            }
        }

        int ret = 0;
        for (int i = 0; i < m; i++) {
            for (int j = 0; j < n; j++) {
                if (matrix[i][j] == '0') {
                    continue;
                }
                int width = left[i][j];
                int area = width;
                for (int k = i - 1; k >= 0; k--) {
                    width = Math.min(width, left[k][j]);
                    area = Math.max(area, (i - k + 1) * width);
                }
                ret = Math.max(ret, area);
            }
        }
        return ret;
    }

    // 单调函数版，主要是基于列，将图翻转90°就是上一题了
    public static int maximalRectangle1(char[][] matrix) {
        int m = matrix.length;
        if (m == 0) {
            return 0;
        }
        int n = matrix[0].length;
        int[][] left = new int[m][n];

        // 需要算出最长宽度，与上个算法一致
        for (int i = 0; i < m; i++) {
            for (int j = 0; j < n; j++) {
                if (matrix[i][j] == '1') {
                    left[i][j] = (j == 0 ? 0 : left[i][j - 1]) + 1;
                }
            }
        }

        int ret = 0;
        // 对于每一列，使用基于柱状图的方法，可以理解为列从0-n使用上题的解法
        for (int j = 0; j < n; j++) {
            // 上边界
            int[] up = new int[m];
            // 下边界
            int[] down = new int[m];

            Deque<Integer> stack = new LinkedList<>();
            for (int i = 0; i < m; i++) {
                while (!stack.isEmpty() && left[stack.peek()][j] >= left[i][j]) {
                    stack.pop();
                }
                up[i] = stack.isEmpty() ? -1 : stack.peek();
                stack.push(i);
            }
            stack.clear();
            for (int i = m - 1; i >= 0; i--) {
                while (!stack.isEmpty() && left[stack.peek()][j] >= left[i][j]) {
                    stack.pop();
                }
                down[i] = stack.isEmpty() ? m : stack.peek();
                stack.push(i);
            }

            for (int i = 0; i < m; i++) {
                int height = down[i] - up[i] - 1;
                int area = height * left[i][j];
                ret = Math.max(ret, area);
            }
        }
        return ret;
    }

    public static void main(String[] args) {
        char[][] matrix = new char[][]{{'1','0','1','0','0'}, {'1','0','1','1','1'}, {'1','1','1','1','1'}, {'1','0','0','1','0'}};
        System.out.println(maximalRectangle(matrix));

        matrix = new char[][]{};
        System.out.println(maximalRectangle(matrix));

        matrix = new char[][]{{'0'}};
        System.out.println(maximalRectangle(matrix));

        matrix = new char[][]{{'1'}};
        System.out.println(maximalRectangle(matrix));

        matrix = new char[][]{{'0', '0'}};
        System.out.println(maximalRectangle(matrix));
    }
}

打印：

6
0
0
1
0

思路：

思路上，第一种解法固然简单了。后续基于单调函数的解法很是巧妙。这类题目也是一种类型，熟悉了才能理解的深吧。
